Harbor 14

Specifications and Equipment

Specifications

• Length Over-All 14 ft.
• Beam 6 ft.
• Draft 2 ft. 2 in.
• Total Sail Area 110 sq. ft.
• Keel Weight 250 lbs.
• Total boat weight 525 lbs.

HARBOR 14

Standard Description

HULL

• The hull is 100% hand laid up fiberglass. Extra reinforcing is provided throughout the hull and cockpit. A high gloss gel coat is used in the hull.

DECK

• The deck is 100% hand laid up fiberglass. Wood, foam, and additional fiberglass laminations are applied in load bearing areas. The deck is attached to the hull with a continuous bond, making it watertight and strong.

COCKPIT

• Contoured seats comfortably seat six. A stowage box is located at the forward end of the cockpit. This box, combined with the hinged seat locker, provides plenty of space for jackets and lunch.

STANDARD COLOR

• The standard color of the hull is white. The deck and cockpit are light gray to minimize glare. The waterline is striped with a narrow red or dark blue stripe. A full range of colors for the hull and waterline are available as options.

HARDWARE

• Two bow and two stern mooring cleats are standard. A mast hinge is also standard. The hinge makes raising and lowering the mast extremely easy. Ronstan cam cleats are used for the jib sheets. The mainsheet is trimmed with a Harken combination ratchet block and cam cleat swivel.

KEEL

• 250 pounds of lead ballast is encased in a fiberglass shell. Five stainless steel keel bolts are used to bolt the fin to the hull. The unique design of the keel offers maximum lift and minimum drag.

RUDDER & TILLER

• The rudder is 100% hand laid up fiberglass. The tiller is aluminum.

SPARS & RIGGING

• The mast and boom are anodized aluminum. The mast is a large, durable section, and the boom is raised for more comfortable tacking and jibing maneuvers. Vinyl-coated 1 x 19 stainless steel wire with turnbuckles is used for the standing rigging. A roller furling system is provided for the jib stay. Colored lines are provided for easy identification of the lines.

SAILS

• The standard sails are white dacron. Colored sails are also available. The jib comes standard with a roller furling system, and the main is equipped with lazy jacks for easy stowing of the main. The main also has reef points for heavy air sailing.

CRUISING AMENITIES

• Sails, a roller furler for the jib, lazy jacks for the main, and bow and stern mooring cleats are standard.

HARBOR 14 STANDARD

STANDARD COLORS:

• Hull White Waterline stripe Dark blue or red Deck Light gray

OPTIONS:

• Custom hull color
• Bottom paint
• Electric motor and battery system
• Rub rail
• Bow bumper
• Whisker pole
• C-Foam cockpit cushions
• Cover – mast up or down
• Lifting harness

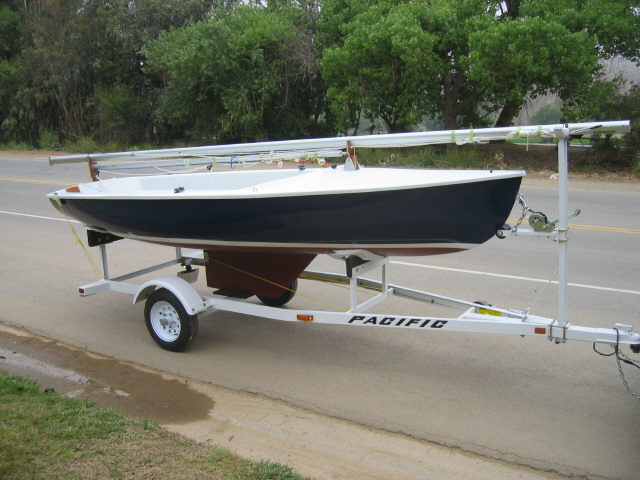

• Custom highway trailer with molded bunks and mast carriers

Specifications subject to change without notice

W.D. Schock Corp. 23125 CANYON RD., CORONA, CA 92883

Ph (909) 277-3377 FAX (909) 277-4104
