Harbor 25

A Sailor’s Dream Come True

The concept for the Harbor 25 is identical to the concept we had for the Harbor 20. This beautiful Steven Schock design has a large comfortable cockpit, classic lines, traditional details, and an efficient hull shape. Most important of all, sailing is delightfully easy.

The Harbor 25 has a self-tacking jib and lazy jacks for the main. It is also equipped with an inboard engine, a head compartment for full-sized people, and bunks for naps and overnight cruising.

The self-bailing cockpit of the Harbor 25 is eight feet in length and comfortably seats six adults.

The Harbor 25 has the same sail control systems as the Harbor 20 – the halyards are internal, and they are lead aft to the cockpit for easy sail adjustments.

The engine is a Yanmar diesel with a saildrive. It is a 2 cylinder 4 stroke engine.

Standard Description

SPECIFICATIONS

LOA: 25' 9"
DWL: 21' 6"
Beam: 8' 1"
Draft: 5' 0"
Displacement: 4,235 lbs.
Ballast: 1,900 lbs.
Sail Area: 356 sq. ft.
I: 32' 10"
P: 33' 4"
ISP: 37' 8"
E: 11' 9"
J: 10' 1"

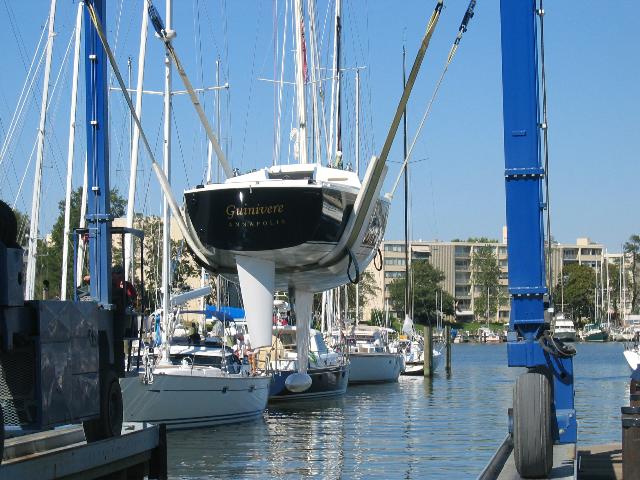

HULL

100% hand laid-up fiberglass
High gloss gel coat KEEL
1,900 pounds of lead ballast encased in a fiberglass shell
Stainless steel keel bolts and nuts
Large sump in the keel for bilge water

RUDDER

Spade design
Laminated fiberglass
Rudder stock is a tubular stainless shaft
Rudder head is aluminum with stainless steel cheeks
Tiller is laminated and varnished wood

DECK & COCKPIT

100% hand laid up fiberglass
Core is end grain balsa
Cockpit is 8’ long and is self-bailing
A large lazarette hatch in the aft deck offers additional storage
All the sail controls are lead aft to the cockpit where the tails can be tucked into special storage slots
Two self-tailing cabintop winches are provided
A barney post is provided for the mainsheet
The mainsheet traveler is located at the aft end of the cockpit
An adjustable backstay is lead under deck to the cockpit
The stainless steel stem fitting is equipped with a roller for a bow anchor

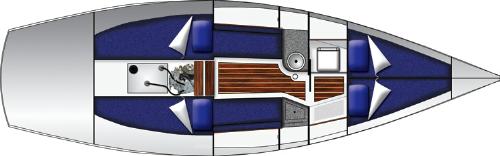

INTERIOR

Sleeping accommodations for four – a forward v-berth, two long quarter berths
The main cabin features comfortable seating with padded backrests
Storage is provided under the forward berth and behind the main cabin seating
A galley cabinet with a sink is located on the port side aft of the main bulkhead
A galley cabinet with additional storage is located on the starboard side opposite the sink
A large insulated ice box is built into the starboard main cabin seat
An enclosed head is located forward of the main bulkhead. A portable toilet is standard. The cabin sole is teak and holly
