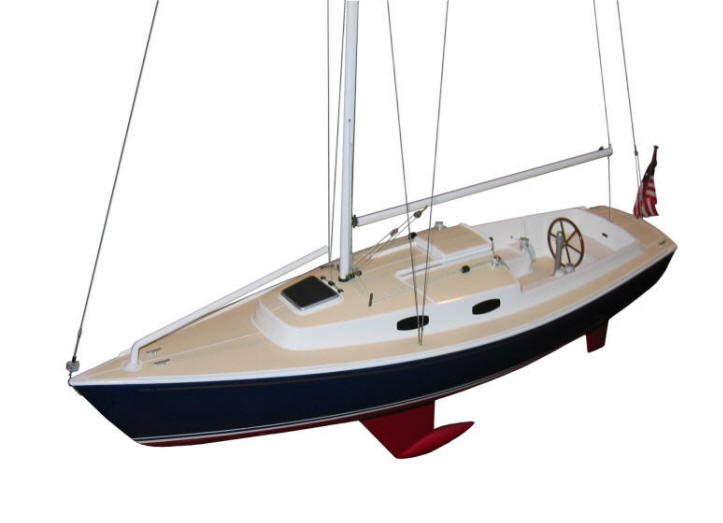

Harbor 30

DESCRIPTION & SPECIFICATIONS

Specifications:

• LOA 30’ 9”
• DWL 26’ 1.5”
• Beam 9’ 11”
• Draft 6’ 3”
• Displacement 7,500 lbs.
• Ballast 3,300 lbs.
• Sail Area 523.3 sq. ft.
• I 39.25’
• P 40.5’
• E 14.10’
• J 12.12’
• Headroom 6’

HULL

• * 100% hand laid-up fiberglass
• *High gloss gel coat KEEL
• * 3,300 pounds of lead ballast encased in a fiberglass shell
• * Stainless steel keel bolts and nuts
• * Large sump in the keel for bilge water

RUDDER

• * Spade design
• * Laminated fiberglass
• * Rudder stock is a tubular stainless shaft
• * Wheel steering
• * Tiller is laminated and varnished wood

DECK & COCKPIT

• * 100% hand laid up fiberglass
• * Core is end grain balsa
• * G10, which is a glass cloth laminate with an epoxy resin binder, is installed in place of the balsa core wherever hardware is mounted over the interior living space. This eliminates the holes that might allow water to leak into the cabin.
• * Cockpit is 8’ long and is self-bailing
• * A large lazarette hatch in the aft deck offers additional storage
• * All the sail controls are lead aft to the cockpit where the tails can be tucked into special storage slots
• * Two self-tailing cabintop winches are provided
• * Two self-tailing winches are provided in the cockpit (one to port, one to starboard) for jib sheet control
• * An adjustable backstay is lead under deck to the cockpit
• * The stainless steel stem fitting is equipped with a roller for a bow anchor

INTERIOR

• * Sleeping accommodations for four – a forward v-berth and one long quarter berth wide enough for two adults
• * The main cabin features comfortable seating with padded backrests
• * Storage is provided under the forward berth and behind the main cabin seating
• * A galley cabinet with a sink is located on the starboard side aft
• * A large insulated ice box is built into the galley
• * An enclosed head is located on the port side aft. A manual head with a holding tank is standard.
• * The cabin sole is teak and holly

SPARS & RIGGING

• * Mast, boom, and jib boom are aluminum
• * Standing rigging is stainless steel Rigger’s Choice
• * Running rigging is colored for easy identification
• * Lazy jacks are provided for the main
• * The jib has a roller furler and a Hoyt self-tacking jib boom
• * The main, jib halyard, jib sock, and lazy jacks are internal
• * The main outhaul is also internal
• * A 12: 1 vang is provided for the boom
• * Windex
• * Masthead light

ELECTRICAL & MECHANICAL

• * Two - 12 volt batteries
• * 12 volt distribution panel
• * 110 distribution panel, 110 outlet, 12 volt outlet
• * Running lights
• * Cabin lights
• * Manual bilge pump

PROPULSION

• * Yanmar diesel, 3 cylinder 4 stroke, 20 hp, 60 amp alternator
• * Two-blade folding propeller
• * Fresh water cooling
• * Instruments and controls located in the cockpit

STANDARD COLORS:

• Hull=White
• Waterline stripe=Dark blue or red
• Cove stripe=Dark blue or red
• Deck=Light gray

OPTIONS

• Custom hull color
• Custom two-toned deck (white with Antique White non-skid)
• Custom cove stripe
• Custom waterline stripe
• Custom waterline highlight stripe
• Bottom paint – Pettit Trinidad
• Lifting eye
• C-Foam cockpit cushions
• Cockpit table
• Asymmetric spinnaker equipment and bow pole
• Ensign & staff

Safety package including:

• Four adult life jackets
• Two child life jackets
• Fire extinguisher
• Flares
• Flashlight
• Horn
• Bucket & boat bailer sponge
• 10 lb. traditional anchor
• 150’ nylon anchor line
• 10’ of 3/16” chain
• Anchor shackles
• Four dock lines
• Two fenders
• Sailkote lubricant
• First aid kit

Specifications are subject to change without notice.

Please call 951-277-3377 for current pricing.

W.D. Schock Corp. 23125 CANYON RD., CORONA, CA 92883

Ph (909) 277-3377 FAX (909) 277-4104
